HELIX 12 CHIRP DI GPS - GhillieSuitShop

  • Sale
  • Regular price $ 2,001.20
Tax included. Shipping calculated at checkout.

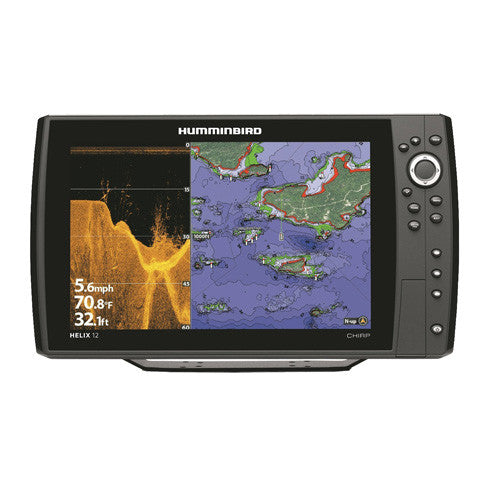

The Helix 12 Chirp DI GPS features a large 12.1" display with LED backlight, Down Imaging sonar with Chirp sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in ContourXD maps, and Ethernet networking capabilities. Includes unit cover.

*Optional 50 kHz transducers available for extreme deepwater use and to obtain 1000 watts.

*Optional Chirp transducer purchase required for 28kHz to 490kHz and maximum 3500 ft depth performance

Features:

- BroadBand Chirp Sonar
- 360 Imaging
- Down Imaging Sonar
- SwitchFire Sonar
- DualBeam Plus Sonar
- Internal GPS
- Upgradeable Software
- Dual SD Card Slots
- High Definition Display
- Contour XD
- Ethernet
- HD Radar
- AIS
- Autopilot
- NMEA
- I-Pilot Link
- AutoChart Live
- NMEA 2000
- NMEA 0183/2000
- Precision GPS
- Wireless

Specifications:

- Display Size - Diagonal: 12.1"
- Display Pixel Matrix: 1280H x 800V
- Display Type: Color TFT
- Display Colors Grayscale: 65,000 Colors
- Sonar Standard: Broadband Chirp/Down Imaging/DualBeam Plus
- Standard Sonar Coverage: 16́, 28́, 45́ & 75́ at -10db
- Standard Sonar Frequency: 50*/83*/200/455/800 kHz
- Sonar Optional: 28kHz to 490kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts*
- Power Output Peak to Peak: 4000 Watts*
- Depth Capability: 350' (DI), 600', 3500'*
- Temperature: Built-In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 14.86" W x 8.83" H x 4.25" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 14.86" W x 8.83" H x 1.36" D
- Mounting Options: Optional In-Dash Mounting Kit
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- Power Draw: 1.75 Amps
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: 2,500, 47, 50/20,000
- Humminbird Mapping: Optional
- Navionics Gold/HotMaps: Optional
- Navionics Platinum+: Optional
- Platinum Capable: Optional
- C-Map 4D: Not Supported
- 360 Imaging: Optional
- i-Pilot Link: Optional
- HD Radar: Optional
- NMEA 2000: Optional
- 5 Port Expansion Module: Optional
- WeatherSense: Not Supported
- Precision GPS: Included
- Heading Sensor GPS: Optional
- PC Connect: Optional
- External GPS Receiver: Optional
- AS Interlink: Not Supported
- AIS Compatibility: Optional
- SwitchFire Sonar: Included
- Screen Snap Shot: Included
- Sonar Recording: Included
- Humminbird PC: Included
- Upgradeable Internal Software: Included
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Included
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Included
- Temperature Graph: Included
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Included
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Included
- X-Press Menu System: Included
- Card Reader Available: Yes
- # Card Slots: 2
