HELIX 5 DI - GhillieSuitShop

HELIX 5 DI - GhillieSuitShop

$ 277.20

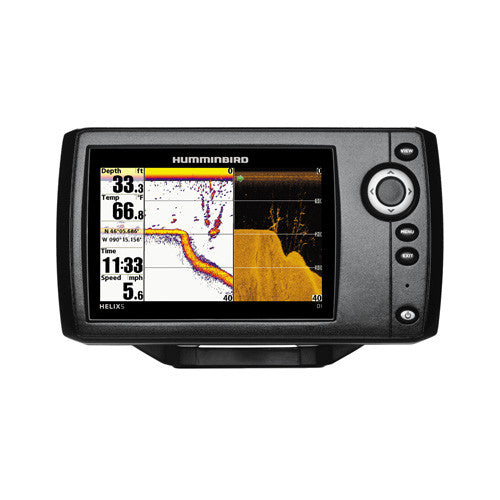

The Helix 5 DI features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam Plus sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird Helix 5 DI fishfinder system.

Features:

- Down Imaging Sonar
- SwitchFire
- DualBeam Plus Sonar
- Upgradeable Software

Specifications:

- Display Size - Diagonal: 5"
- Display Pixel Matrix: 800H X 480V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: Down Imaging/DualBeam Plus
- Standard Sonar Coverage: 16Á, 28Á, 45Á & 75Á at -10db
- Standard Sonar Frequency: 455/800/200/455 kHz
- Sonar Optional: None
- Target Separation: 2.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 350' (DI) & 600' (2D)
- Temperature: Built In Transducer
- Speed: Optional
- Backlight: LED
- Unit Size - Gimbal Mount: 7.55" W x 4.64" H x 3.3" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 7.55" W x 4.28" D x 1.13" D
- Mount B Unit Size 2: Optional In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- Power Draw: 615 mA
- GPS Receiver: Not Supported
- GPS Tracking: Not Supported
- GPS Chartplotting: Not Supported
- Humminbird Mapping: Not Supported
- Navionics Gold/HotMaps: Not Supported
- Navionics Platinum+: Not Supported
- Platinum Capable: Not Supported
- C-Map 4D: Not Supported
- 360 Imaging: Not Supported
- i-Pilot Link: Not Supported
- HD Radar: Not Supported
- NMEA 2000: Not Supported
- 5 Port Expansion Module: Not Supported
- WeatherSense: Not Supported
- Precision GPS: Not Supported
- Heading Sensor GPS: Not Supported
- PC Connect: Optional
- External GPS Receiver: Not Supported
- AS Interlink: Not Supported
- AIS Compatibility: Not Supported
- SwitchFire Sonar: Included
- Screen Snap Shot: Not Supported
- Sonar Recording: Not Supported
- Humminbird PC: Included
- Upgradeable Internal Software: Optional
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Not Supported
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Not Supported
- Temperature Graph: Not Supported
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Not Supported
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Optional
- X-Press Menu System: Included
- Card Reader Available: No
- Domestic CHO: no
- Intl Portable: no
- Hardware: MHX XNT
- Transducer 2: XNT 9 DI T
- Bronze Thru Hull: N/A
- Plastic Thru Hull: XPTH 9 DI T
- Puck: XIH 9 DI T
- Trolling Motor: XTM 9 DI 25 T
- Angled Puck: N/A
- Portable 2: N/A
- Bronze 3-n-1: N/A
