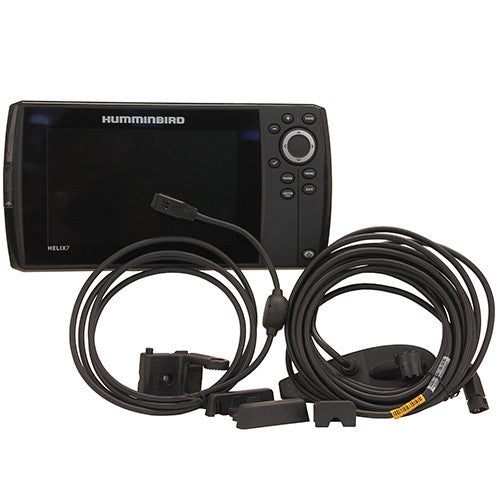

Discover fish and structure, then track their every move with the Helix 7 DI GPS. See fish and vertical lure presentations by viewing Down Imaging and SwitchFire Sonar side-by-side on the wide, 16:9 display. The reliable, internal GPS offers 2500 waypoints and 50 routes, so you can return to your most productive spots time and time again. A single, microSD card slot delivers Humminbird LakeMaster, AutoChart and AutoChart Pro, as well as Navionics Gold/HotMaps.
Features:
- Down Imaging Sonar
- SwitchFire Sonar
- DualBeam Plus Sonar
- Internal GPS
- Upgradeable Software
- High Definition Display
- UniMap Cartography
- Micro SD Card Reader
Specifications:
- Display Size - Diagonal: 7"
- Display Pixel Matrix: 800H x 480V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: Down Imaging/DualBeam Plus
- Standard Sonar Coverage: 16́, 28́, 45́ & 75́ at -10db
- Standard Sonar Frequency: 200/455/455/800 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 350' (DI) & 600' (2D)
- Temperature: Built In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 10.54" W x 5.44" H x 1.13" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 10.54" W x 5.80" H x 3.68" D
- Mount B Unit Size 2: Optional In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- Power Draw: 800 mA
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: 2,500, 45, 50/20,000
- Humminbird Mapping: Optional
- Navionics Gold/HotMaps: Optional
- Navionics Platinum+: Not Supported
- Platinum Capable: Not Supported
- C-Map 4D: Not Supported
- 360 Imaging: Not Supported
- i-Pilot Link: Not Supported
- HD Radar: Not Supported
- NMEA 2000: Not Supported
- 5 Port Expansion Module: Not Supported
- WeatherSense: Not Supported
- Precision GPS: Included
- Heading Sensor GPS: Not Supported
- PC Connect: Optional
- External GPS Receiver: Not Supported
- AS Interlink: Not Supported
- AIS Compatibility: Not Supported
- SwitchFire Sonar: Included
- Screen Snap Shot: Not Supported
- Sonar Recording: Included
- Humminbird PC: Included
- Upgradeable Internal Software: Included
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Included
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Not Supported
- Temperature Graph: Not Supported
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Included
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Included
- X-Press Menu System: Included
- Card Reader Available: Yes
- # Card Slots: 1
- Domestic CHO: n/a
- Intl Portable: n/a
- Hardware: MHX XNT
- Transducer 2: XNT 9 DI T
- Bronze Thru Hull: N/A
- Plastic Thru Hull: N/A
- Puck: XIH 9 DI T
- Trolling Motor: XTM 9 DI 25 T
- Angled Puck: N/A
- Portable 2: N/A
- Bronze 3-n-1: N/A
