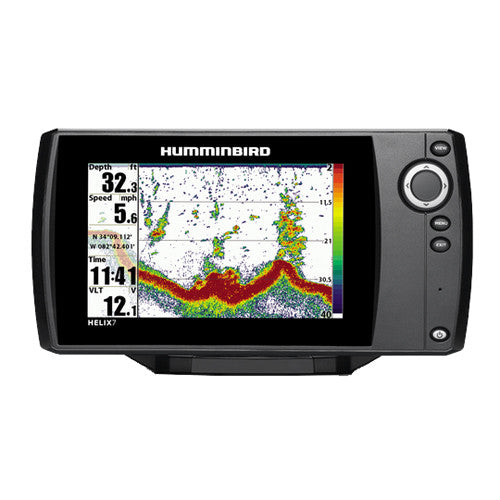

HELIX 7 SONARÌ_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_ - GhillieSuitShop

HELIX 7 SONARÌ_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_Ì_ - GhillieSuitShop

$ 406.20


The Helix 7 Sonar features a brilliant 800H x 480V, 7" 9-bit color display with backlight. DualBeam Plus sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird Helix 7 Sonar fishfinder system.

Features:

- SwitchFire Sonar
- DualBeam Plus Sonar
- Upgradeable Software
- High Definition Display

Specifications:

- Display Size - Diagonal: 7"
- Display Pixel Matrix: 800H x 480V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: DualBeam Plus
- Standard Sonar Coverage: 20́, 60́ at -10db
- Standard Sonar Frequency: 200/83 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 1500'
- Temperature: Built In Transducer
- Speed: Capable
- Backlight: LED
- Unit Size - Gimbal Mount: 10.54" W x 5.44" H x 1.13" D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 10.54" W x 5.80" H x 3.68" D
- Mount B Unit Size 2: Optional In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 20 T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- Power Draw: 800 mA
- GPS Receiver: Not Supported
- GPS Tracking: Not Supported
- GPS Chartplotting: Not Supported
- Humminbird Mapping: Not Supported
- Navionics Gold/HotMaps: Not Supported
- Navionics Platinum+: Not Supported
- Platinum Capable: Not Supported
- C-Map 4D: Not Supported
- 360 Imaging: Not Supported
- i-Pilot Link: Not Supported
- HD Radar: Not Supported
- NMEA 2000: Not Supported
- 5 Port Expansion Module: Not Supported
- WeatherSense: Not Supported
- Precision GPS: Not Supported
- Heading Sensor GPS: Not Supported
- PC Connect: Optional
- External GPS Receiver: Not Supported
- AS Interlink: Not Supported
- AIS Compatibility: Not Supported
- SwitchFire Sonar: Included
- Screen Snap Shot: Not Supported
- Sonar Recording: Not Supported
- Humminbird PC: Included
- Upgradable Internal Software: Optional
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Not Supported
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Not Supported
- Temperature Graph: Not Supported
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Not Supported
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Optional
- X-Press Menu System: Included
- Card Reader Available: No
- # Card Slots: 0
- Domestic CHO: no
- Intl Portable: no
- Hardware: MHX XNTF
- Transducer 2: XNT 9 20 T
- Bronze Thru Hull: XTH 9 20
- Plastic Thru Hull: XTH 9 20 P
- Puck: XP 9 20 T
- Trolling Motor: XTM 9 20 T
- Angled Puck: XAP 9 20
- Portable 2: XPT 9 20 T
- Bronze 3-n-1: N/A
