HELIX 9 SONAR GPS - GhillieSuitShop

  • Sale
  • Regular price $ 791.20
Tax included. Shipping calculated at checkout.

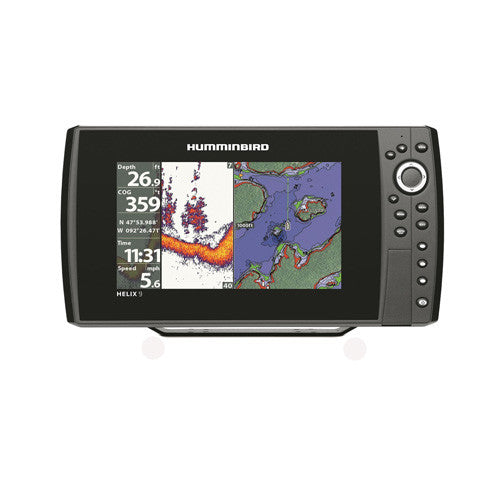

The Helix 9 Sonar GPS features a super bright LED backlit 9" display. This wide screen 800H x 480V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The DualBeam Plus sonar with SwitchFire has 4000 watts PTP power output, GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet networking capabilities. Includes a unit cover, dual card reader and Instant Access preset buttons.

*Optional 50 kHz transducers available for extreme deepwater use

*To obtain 1000 watts, optional deepwater transducer required

Features:

- 360 Imaging
- SwitchFire Sonar
- DualBeam Plus Sonar
- Internal GPS
- Upgradeable Software
- Dual SD Card Slots
- High Definition Display
- Contour XD Cartography
- Ethernet
- HD Radar
- AIS
- Autopilot
- i-Pilot Link
- AutoChart Live
- NMEA 2000
- NMEA 0183/2000
- Precision GPS
- Wireless

Specifications:

- Display Size - Diagonal: 9"
- Display Pixel Matrix: 480V x 800H
- Display Type: Color TFT
- Display Colors Grayscale: 65,000 Colors
- Sonar Standard: DualBeam Plus
- Standard Sonar Coverage: 20́ & 60́ at -10db
- Standard Sonar Frequency: 50*/83/200 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts
- Power Output Peak to Peak: 4000 Watts
- Depth Capability: 1500' & 3000'*
- Temperature: Built-In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 13.44" W x 7.12" H x 4.20" D
- Mount A Type: Gimbal
- Unit Size - Indash Mount: 13.44" W x 7.12" H x 3.99" D
- Mounting Options: Optional In-Dash Mounting Kit
- Transducer Standard: XNT 9 20 T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
- Humminbird Mapping: Optional
- Navionics Gold/HotMaps: Optional
- Navionics Platinum+: Optional
- Platinum Capable: Optional
- C-Map 4D: Not Supported
- 360 Imaging: Optional
- i-Pilot Link: Optional
- HD Radar: Optional
- NMEA 2000: Optional
- 5 Port Expansion Module: Optional
- WeatherSense: Not Supported
- Precision GPS: Included
- Heading Sensor GPS: Optional
- PC Connect: Optional
- External GPS Receiver: Optional
- AS Interlink: Not Supported
- AIS Compatibility: Optional
- SwitchFire Sonar: Included
- Screen Snap Shot: Included
- Sonar Recording: Included
- Humminbird PC: Included
- Upgradeable Internal Software: Included
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Included
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Included
- Temperature Graph: Included
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Included
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Included
- X-Press Menu System: Included
- Card Reader Available: Yes
- # Card Slots: 2
