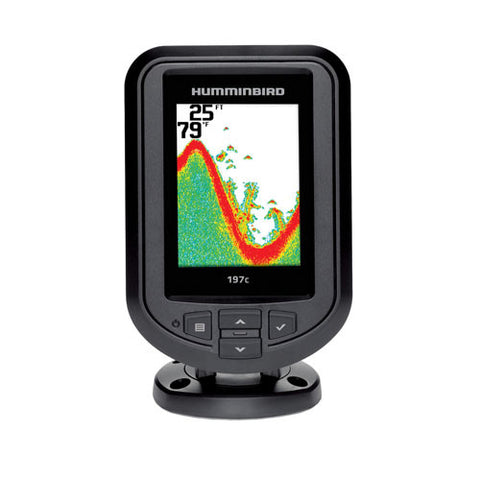

The PiranhaMAX 197c features a 256 color 320V X 240H, 3.5" display with 1600 watts PTP power output with Dual Frequency sonar. The design also allows drop-in replacement for competitive in-dash models.
Features:
- Dual Beam
- Tilt and Swivel
Specifications:
- Display Size - Diagonal: 3.5"
- Display Pixel Matrix: 240H X 320V
- Display Type: Color TFT
- Display Colors Grayscale: 256 Colors
- Sonar Standard: Dual Beam
- Standard Sonar Coverage: 28́ & 16́ at -10db
- Standard Sonar Frequency: 200/455 kHz
- Sonar Optional: None
- Target Separation: 2.5"
- Power Output RMS: 300 Watts
- Power Output Peak to Peak: 2400 Watts
- Depth Capability: 600'
- Temperature: Built In Transducer
- Speed: Not Supported
- Backlight: LED
- Unit Size - Gimbal Mount: 3.875" W x 6.5" H x 3.5" D
- Mount A Type: Tilt and Swivel
- Unit Size - Indash Mount: 3.875" W x 5.625" H x 1.375" D
- Mount B Unit Size 2: Optional In-Dash
- Mounting Options: Tilt and Swivel/Optional In-Dash Mounting Kit
- Transducer Standard: XNT 9 28 T
- Transducer Mounting: Transom
- Power Input: 10-20 VDC
- Power Draw: 220mA
- GPS Receiver: Not Supported
- GPS Tracking: Not Supported
- GPS Chartplotting: Not Supported
- Humminbird Mapping: Not Supported
- Navionics Gold/HotMaps: Not Supported
- Navionics Platinum+: Not Supported
- Platinum Capable: Not Supported
- C-Map 4D: Not Supported
- 360 Imaging: Not Supported
- i-Pilot Link: Not Supported
- HD Radar: Not Supported
- NMEA 2000: Not Supported
- 5 Port Expansion Module: Not Supported
- WeatherSense: Not Supported
- Precision GPS: Not Supported
- Heading Sensor GPS: Not Supported
- PC Connect: Not Supported
- External GPS Receiver: Not Supported
- AS Interlink: Not Supported
- AIS Compatibility: Not Supported
- SwitchFire Sonar: Not Supported
- Screen Snap Shot: Not Supported
- Sonar Recording: Not Supported
- Upgradeable Internal Software: Not Supported
- Split Screen Zoom: Not Supported
- Split Screen Bottom Lock: Not Supported
- 3D Chart View: Not Supported
- Large Digits View: Not Supported
- Wide/Narrow Cone Split Screen: Not Supported
- Custom View Selections: Not Supported
- Custom Digital Readout: Not Supported
- View Preset Keys: Not Supported
- Temperature Graph: Not Supported
- Temperature Alarm: Not Supported
- Freeze Frame: Not Supported
- Instant Image Update: Not Supported
- Mark Structure on Sonar: Not Supported
- Selective Fish ID+: Included
- Real Time Sonar: Not Supported
- Triplog: Not Supported
- X-Press Menu System: Not Supported
- MMC Others: n/a
- Card Reader Available: No
- Domestic CHO: no
- Intl Portable: no
- Hardware: MHX XNT
- Transducer 2: XNT 9 28 T
- Bronze Thru Hull: N/A
- Plastic Thru Hull: N/A
- Puck: XP 9 28 T
- Trolling Motor: XTM 9 28 T
- Angled Puck: N/A
- Portable 2: N/A
- Bronze 3-n-1: N/A
